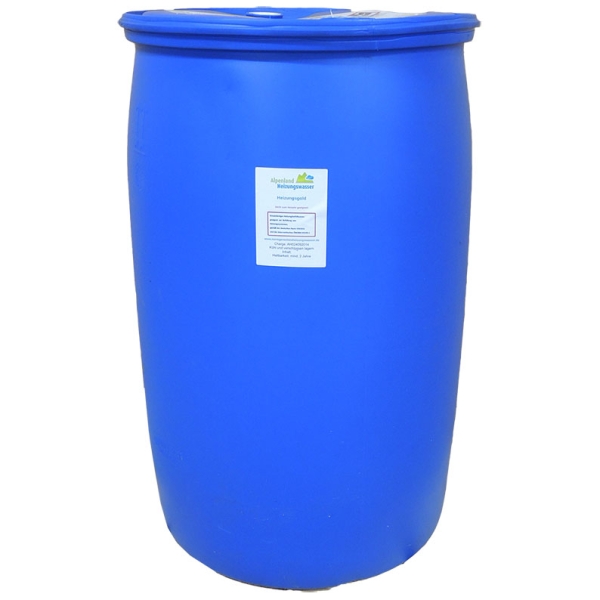

Antifreeze Heating Gold Cooling Brine Mixture SK 40%, 200 litres in barrel (on pallet)

Heizungsgold Cooling brine mixture SK 40%, 200 litres in barrels (on pallet).
Environmentally friendly long-term antifreeze concentrate with corrosion inhibitors for cooling and heating systems. All mixtures with VE-Water 2035.

No return or refund of containers.

Standard delivery without lifting platform. If required, the lifting platform surcharge will be charged separately.

Mode of action:
Heizungsgold Cooling brine mixture SK is an odourless liquid based on mono- propylene glycol, which is used in cooling and heating systems, especially in food processing plants, as a cooling brine or cooling or heat transfer fluid. The special corrosion inhibitors protect the metals and plastic materials usually used in plant construction, including copper and aluminium, from corrosion, layer formation and deposits. Thus, the efficiency of the plants is maintained. Sealing materials are not attacked by Heizungsgold cooling brine concentrate SK.

General information:
Before filling, the system should be rinsed with softened water and checked for tightness of all connections by pressure testing.
and checked for tightness of all connections by pressure testing. The system should be filled with Heizungsgold Cooling brine mixture SK ready for use immediately after pressure testing. Do not introduce air! Galvanised system components should be avoided, as zinc is not resistant to glycols. The heat transfer medium circuit should always be designed as a closed system with membrane pressure compensation vessels according to DIN 4807. Oxygen ingress consumes the corrosion inhibitors. Therefore, only use low-diffusion connecting elements or hoses. Soldered connections should be made with Ag or Cu hard solder, otherwise the system must be thoroughly flushed.

Application:
The concentrate is completely miscible with water. For quality reasons, we recommend adding only demineralised water. When delivered, the concentrate achieves frost protection > -50 °C without segregating. To ensure corrosion resistance, we recommend not diluting the concentrate to less than 20 % by volume of cooling brine. Heating and cooling brine concentrate SK is miscible with all antifreeze agents based on monoethylene glycol and is free of nitrite, nitrate, secondary amine, phosphate, borate and silicate. In addition, Cooling brine concentrate SK only contains corrosion protection agents with water hazard class WGK 1, is non-toxic and is biodegradable.

Compatibility with materials:
Materials commonly used in plant and heating construction are not attacked. Polyurethane elastomers, phenol-formaldehyde resins and soft PVC are not resistant.

Test method and corrosion properties:
We recommend checking the filled cooling brine regularly (approx. annually). You can check the corrosion properties of our cooling brine via the pH value. The pH value should be > 7.5. The measurement is carried out e.g. via pH measuring strips. If the value is lower, the fluid should be replaced or treated with Heizungsgold pH-Fixx.

Storage:
Store in a cool place and in closed containers.
